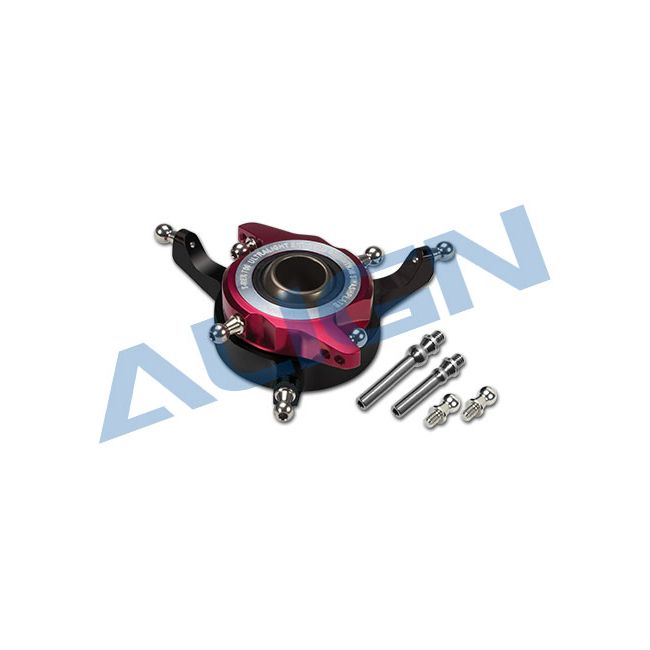

H60H004XX H60H004XX - 600 CCPM Metal Swashplate

H60H004XX - 600 CCPM Metal Swashplate

Instruction:
●Specially designed for both DFC and FL flybarless rotor head system, improving linkage rod connection strength and minimizing detachment during extreme flight maneuvers.
●Two ball attachment points allowing pilot to choose between higher control resolution or faster maneuver response.
●6061-T6 Aluminum alloy material and CNC processed。
●Suitable for T-REX 550/600.


Specification:
●CCPM Metal Swashplate x 1
●Bearing(6706ZZ) x 2(Φ30xΦ37x4mm)
●Linkage ball B(M3x3) x 5(Φ4.7x9.7mm)
●Linkage ball B(M3x4) x 2(Φ5x12mm)
●Φ5 Linkage ball D(M3x3.5) x 2(Φ5x9.3mm)
●Long linkage ball(M3x3) × 1(Φ4.7x24.5mm)
●Φ5 Long linkage ball(M3x4) × 1(Φ5x29mm)
